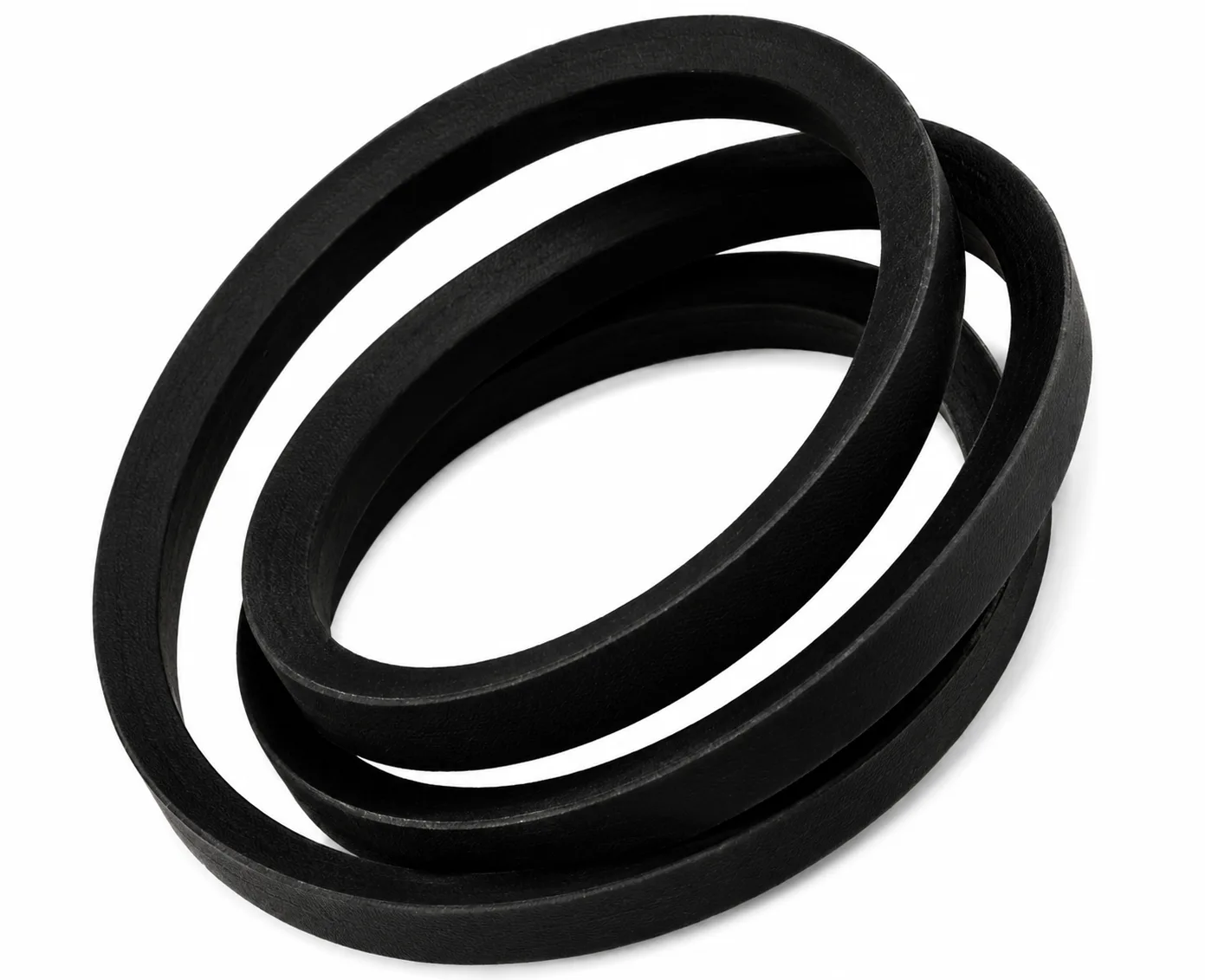

V-Belt
The Earth India Company offers V-Belts designed for efficient and dependable power transmission across a wide range of industrial machinery and equipment. V-belts transmit power through frictional contact between the belt sidewalls and the grooves of a matching V-pulley (sheave). Their trapezoidal cross-section creates a wedging action inside the pulley groove, helping provide effective power transmission in a compact drive arrangement. Available in multiple sections, lengths and constructions, V-belts can be selected according to the required power, speed, pulley dimensions and operating conditions.
CORE COMPOUNDING
EPDM/Neoprene compound with high-strength polyester cords
Overview & Engineering Design
Designed for Dependable Power Transmission V-belt drives are widely used because of their simple design, reliable operation and ability to transmit power efficiently between rotating shafts.
Core Product Features
Efficient Power Transmission
Wedging action within the pulley groove provides effective frictional grip.
Compact Drive Design
Suitable for transmitting power within relatively compact machinery layouts.
Smooth & Quiet Operation
Flexible belt construction helps absorb vibration and shock loads.
Reliable Performance
Designed for continuous industrial power-transmission applications.
No Lubrication Required
Provides clean and practical operation compared with lubricated drive systems.
Easy Installation & Maintenance
Straightforward belt replacement when the drive is properly designed and accessible.
Multiple Sections & Lengths
Available across various V-belt profiles to meet different drive requirements.
Suitable for Multi-Belt Drives
Multiple matched belts can be used together where higher power transmission is required.
V-Belt Construction
A V-belt consists of several components designed to provide strength, flexibility and reliable engagement with the pulley.
Tensile Member
High-strength tensile cords carry the primary operating load and help control belt elongation during operation.
Compression Rubber
The rubber section below the tensile member provides flexibility and supports the belt as it bends around the pulley.
Cushion Rubber
The surrounding rubber compound supports and protects the tensile cords while maintaining the required belt structure.
Protective Fabric / Cover
Depending on the V-belt construction, an outer fabric layer may provide additional protection against wear and environmental exposure.
How V-Belt Drives Work & Configurations
The V-shaped belt runs inside a corresponding pulley groove. As tension is applied, the belt sidewalls contact the pulley groove and create a wedging action.
Friction & Wedge Action
This friction between the belt and pulley allows rotational power to be transferred from the drive pulley to the driven pulley.
Importance of Correct Tension
A belt that is too loose may slip, while excessive tension can increase loads on the belt, bearings and shafts.
Single & Multiple V-Belt Drives
Single-Belt Drives
A single V-belt can be used where the required power transmission falls within the capacity of the selected belt and drive configuration.
Multiple-Belt Drives
For higher-power applications, multiple V-belts may operate side by side on a multi-groove pulley. For such drives, correctly matched belts are important so that the operating load is distributed as evenly as possible between the belts.
V-Belt Sections & Profiles
V-belts are available in different cross-sectional profiles according to the required power, pulley size and drive configuration. Common profiles include:
The correct profile must always be matched with the corresponding pulley groove. Availability should be confirmed according to the required belt size and construction.
Typical Applications
V-belts are commonly used in:
The appropriate belt section and construction depend on the power-transmission requirements of the equipment.
Understanding V-Belt Specifications
A V-belt is generally identified using its:
For example, B-66 indicates a B-section V-belt with a 66 inch nominal length designation. V-belt length may be specified using different reference systems depending on the manufacturer and belt standard. Therefore, when replacing an existing belt, the complete belt marking and manufacturer reference should be provided.
Complete Belting Solutions from The Earth India Company
With years of industry experience, The Earth India Company provides reliable and application-focused power transmission belt solutions for industrial machinery and equipment. Whether you need a replacement V-belt or a belt for a new drive, our team can assist based on the belt section, length, drive configuration and application requirements.
Selecting the Right V-Belt
Important parameters for V-belt selection include:
For replacement requirements, sharing the complete belt marking, belt dimensions and clear photographs can help with belt identification.
Need a V-Belt?
Share your B2B inquiry details below, including belt marking, section, length, quantity and application details, and we'll help identify the suitable belt for your requirement.
Industries & Applications
Industrial Machinery
Proven Application Sector
Pumps
Proven Application Sector
Fans
Proven Application Sector
Blowers
Proven Application Sector
Compressors
Proven Application Sector
Machine Tools
Proven Application Sector
Agricultural Equipment
Proven Application Sector
Processing Machinery
Proven Application Sector
Textile Machinery
Proven Application Sector
Material Handling Equipment
Proven Application Sector
General Mechanical Drives
Proven Application Sector
Certifications & Compliance
Our manufacturing processes adhere to internationally recognized industrial product certificates.
ISO 9001:2015
Certified Quality Management System
DIN 22102
German Standard for Textile Conveyor Belts
REACH & RoHS
Hazardous Substance & Chemical Safety
BIS / IS 1891
Bureau of Indian Standards Industrial Specification
CE Certified
European Health & Environmental Safety Directive
Related Products
Complementary conveyor system designs and high-resistance belting accessories.

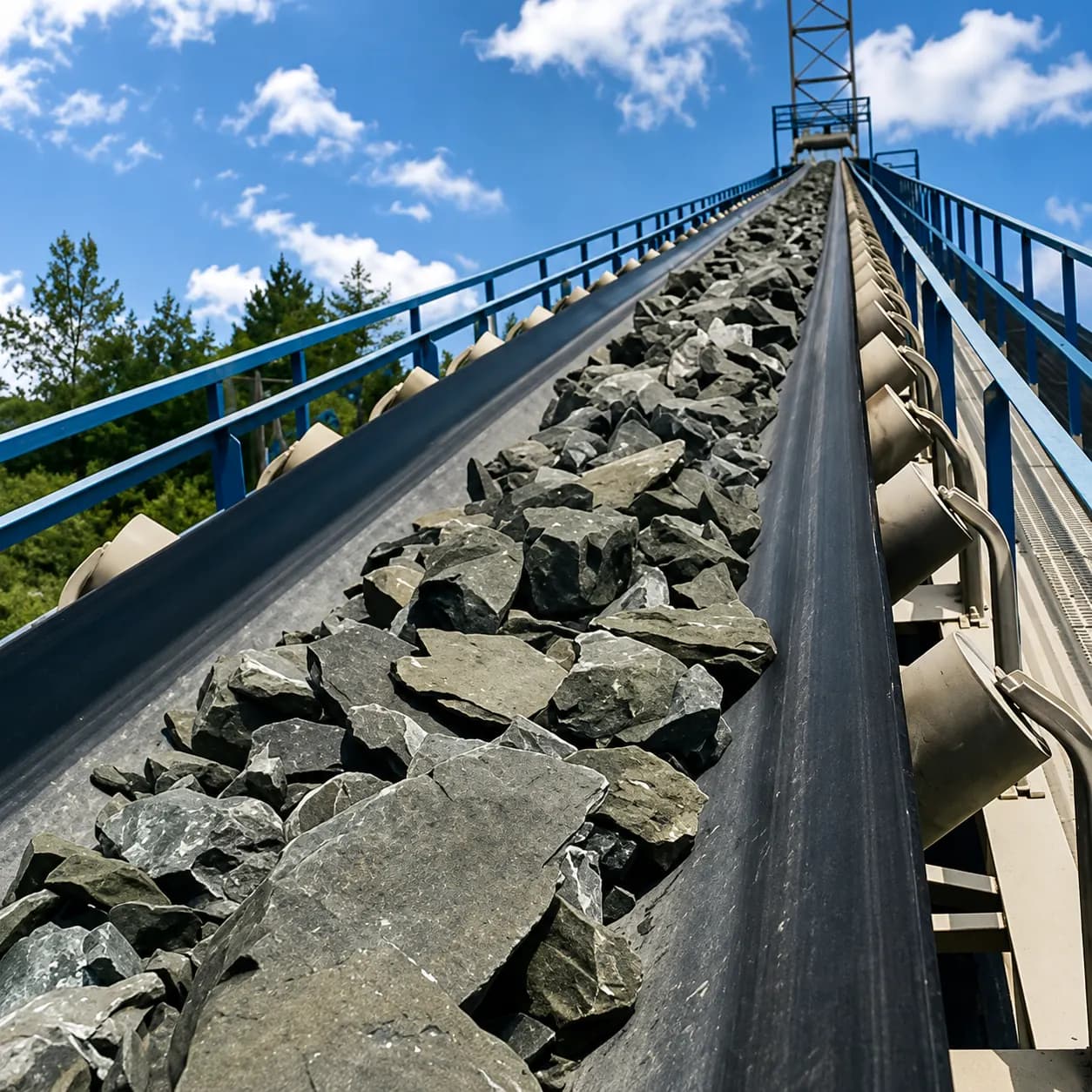

Heavy Duty Conveyor Belt
Engineered for Strength. Built for Demanding Material Handling.
Rubber timing belt
Precise, Synchronous & Reliable Power Transmission
Poly V-Belt
Compact, Flexible & High-Performance Power Transmission
Frequently Asked Questions
Technical answers regarding our v-belt configurations.
For standard specifications of our v-belt, typical production lead time is 7 to 10 working days. Custom configurations requiring specific fabrications or compound formulations may take 2 to 3 weeks.
Yes, all our products are manufactured conforming to major international standards, including ISO 9001:2015 for quality management systems, DIN 22102 for textile conveyor belts, and FDA 21 CFR 177.2600 for food-grade compounds.
Yes, our engineering team provides end-to-end onsite erection, hot/cold vulcanizing splicing, modular installation, and system commissioning services globally.
We can manufacture belts in widths ranging from 100mm up to 2400mm, with cover profiles, cleat setups, tracking guides, and carcass specifications designed to meet your project parameters.
You can send us your load metrics, drop heights, material density, and angle of inclination. Our application engineers use specialized calculation tools to calculate required motor kilowatts, belt rating, and guide pulley sizes before giving you a quote.
