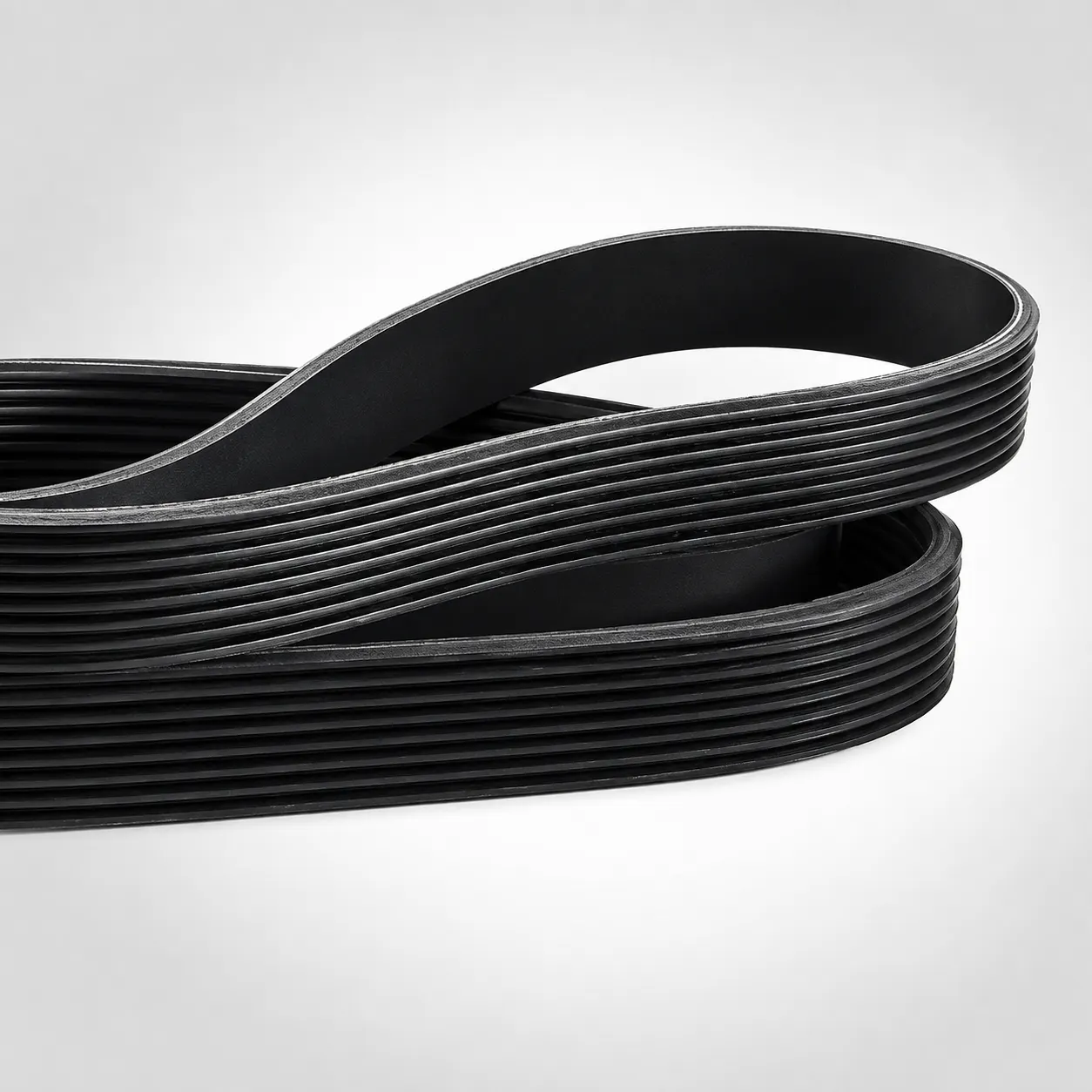

Poly V-Belt
The Earth India Company offers Poly-V Belts (Ribbed Belts) designed for efficient power transmission where compact drive dimensions, flexibility, high operating speeds and smooth performance are required. A Poly-V belt combines the flexibility of a flat belt with the gripping characteristics of a V-belt. Multiple longitudinal ribs engage with corresponding grooves in the pulley, providing a large contact area and effective power transmission within a compact belt profile. Available in different rib sections, numbers of ribs and belt lengths, Poly-V belts can be selected according to the power, speed and configuration of the drive system.
CORE COMPOUNDING
Engineered Rubber Compound + Longitudinal Ribs + High-Strength Tensile Cords
Overview & Engineering Design
Designed for Compact & Efficient Drives The thin cross-section and multiple longitudinal ribs allow Poly-V belts to bend easily around relatively small pulley diameters while maintaining effective contact with the pulley.
Core Product Features
High Power Transmission Capability
Multiple ribs provide effective contact between the belt and pulley.
Compact Drive Design
Suitable where limited installation space is available.
High Flexibility
Thin belt construction enables operation around relatively small pulley diameters.
Suitable for High-Speed Drives
Well suited to applications requiring smooth operation at elevated rotational speeds.
Smooth & Quiet Operation
Continuous rib engagement helps provide stable power transmission.
Good Load Distribution
Multiple ribs distribute the operating load across the width of the belt.
Low Maintenance
Requires no lubrication.
Wide Range of Sizes
Available with different rib profiles, belt lengths and numbers of ribs.
Poly-V Belt Construction
Poly-V belts combine several components to provide flexibility, strength and effective pulley engagement.
Ribbed Driving Surface
Multiple longitudinal V-shaped ribs run along the length of the belt and engage with corresponding grooves in the Poly-V pulley.
Tensile Cords
High-strength tensile members provide the required tensile strength and dimensional stability while controlling elongation during operation.
Rubber Compound
Engineered rubber compounds form the belt body and ribs, providing flexibility and supporting reliable power transmission.
Belt Back
The outer surface protects the internal construction and, depending on the drive configuration, may also interact with supporting or idler pulleys.
Poly-V Belts vs Conventional V-Belts
Both belt types use friction to transmit power, but their construction and drive characteristics differ.
Poly-V Belts
Use multiple longitudinal ribs and have a relatively thin belt construction. They are particularly useful for compact, high-speed and multi-pulley drive arrangements.
Conventional V-Belts
Use an individual V-shaped cross-section and are widely used for general industrial power transmission, including many heavy-duty drive arrangements.
The appropriate belt should be selected according to the power requirement, pulley configuration, available space, operating speed and drive design.
Why Multiple Ribs?
Instead of using one large V-shaped section, a Poly-V belt uses multiple smaller longitudinal ribs. This provides a broad effective contact area while maintaining a thin and flexible belt construction.
Poly-V Belt & Pulley Compatibility
The Poly-V belt section must match the corresponding pulley rib profile. For example, a PJ belt should operate with a PJ-compatible pulley, while a PL belt requires the appropriate PL pulley geometry.
Correct matching is essential for proper rib engagement, load distribution and reliable belt performance.
Poly-V Belt Profiles
Poly-V belts are categorized according to their rib pitch and cross-sectional profile. Common industrial sections include:
The appropriate section should always be matched with the corresponding Poly-V pulley profile.
Typical Applications
Poly-V belts are commonly used in:
The appropriate belt section and construction depend on the power-transmission requirements of the equipment.
Understanding Poly-V Belt Specifications
Poly-V belts are commonly identified using:
For example, 10 PL 2477 indicates 10 ribs, PL section, and a 2477 length designation. Similarly, 450 PJ indicates a PJ-section belt of length 450. The exact marking format can vary between manufacturers, so the complete existing marking should be provided when replacing.
Complete Belting Solutions from The Earth India Company
With years of industry experience, The Earth India Company provides application-focused power transmission belt solutions for a wide range of industrial requirements. Our team can assist with Poly-V belt identification and selection based on the belt marking, rib profile, number of ribs, dimensions and drive requirements.
Selecting the Right Poly-V Belt
Important parameters include:
For replacement requirements, the easiest starting point is usually the complete marking printed on the existing belt.
Need a Poly-V Belt?
Share your complete belt marking, Poly-V section, number of ribs, belt length, quantity and application details, and our team will help identify the suitable solution.
Industries & Applications
Industrial Machinery
Proven Application Sector
Machine Tools
Proven Application Sector
Fans
Proven Application Sector
Blowers
Proven Application Sector
Pumps
Proven Application Sector
Compressors
Proven Application Sector
Textile Machinery
Proven Application Sector
Processing Equipment
Proven Application Sector
Fitness Equipment
Proven Application Sector
Roller Drives
Proven Application Sector
Material Handling Equipment
Proven Application Sector
General High-Speed Power Transmission
Proven Application Sector
Certifications & Compliance
Our manufacturing processes adhere to internationally recognized industrial product certificates.
ISO 9001:2015
Certified Quality Management System
DIN 22102
German Standard for Textile Conveyor Belts
REACH & RoHS
Hazardous Substance & Chemical Safety
BIS / IS 1891
Bureau of Indian Standards Industrial Specification
CE Certified
European Health & Environmental Safety Directive
Related Products
Complementary conveyor system designs and high-resistance belting accessories.
Rubber timing belt
Precise, Synchronous & Reliable Power Transmission

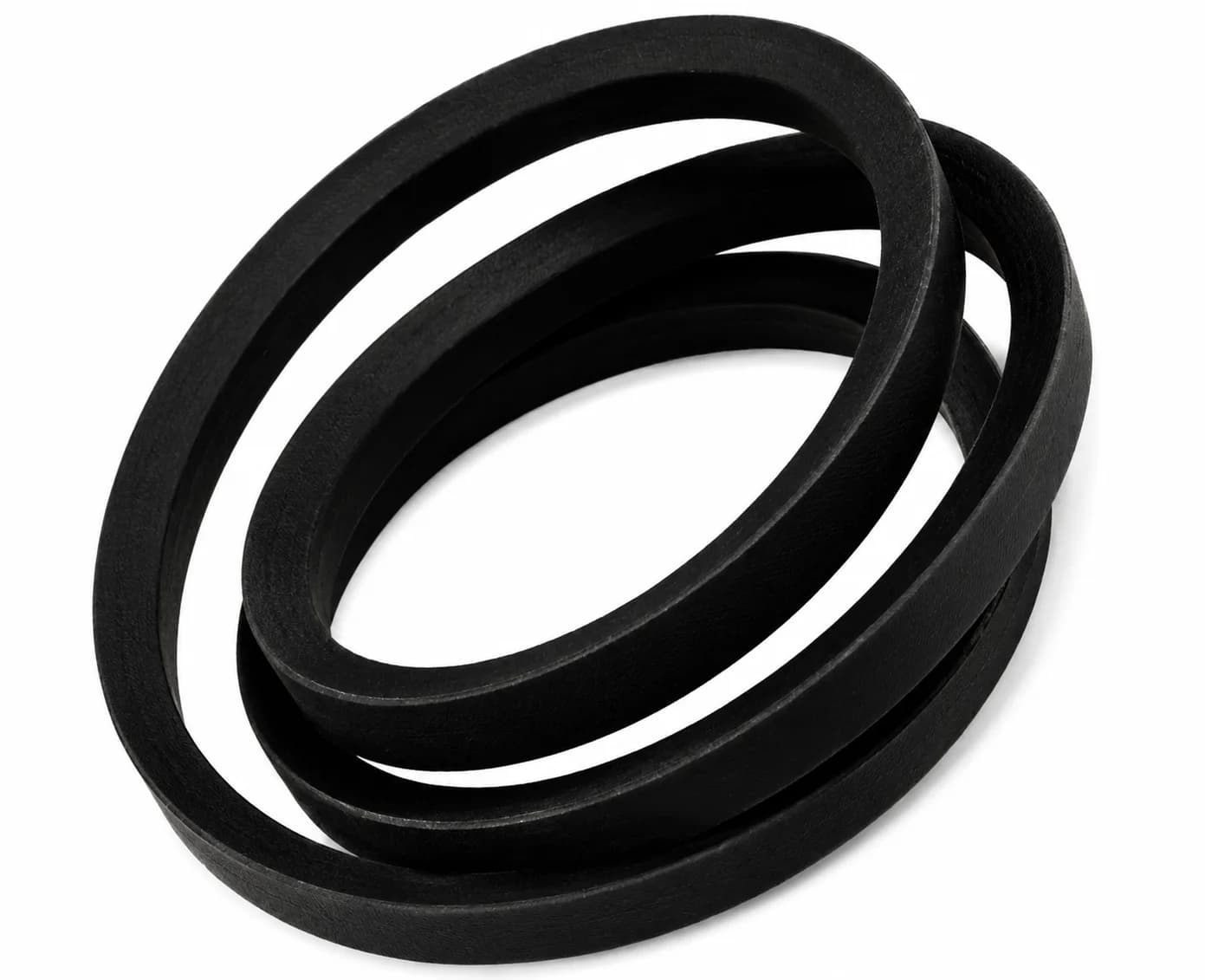

V-Belt
